Single-Pass Textile Printer · Flagship

Konica Minolta Nassenger SP-1e

The flagship of the Nassenger range - single-pass textile printing technology for high-definition printing at production speed.

Konica Minolta single-pass printhead - sold & serviced by Apsom

Ultra High Speed mode up to 67.3 m/min (720×360 dpi)
Up to 8 colors, 216 printheads, 1830mm print width
Automatic nozzle, colour & alignment compensation
Pan-India installation & AMC support included

Request a Quote Download Brochure

Technical Specifications

Built for the production floor.

Product Name	NASSENGER SP-1e
Technology	Drop-on-demand piezoelectric inkjet
Print Head	Variable drop (7-27pl), 2,048 nozzles
Colors	6 / 7 / 8 colors (144-216 heads)
Print Width	1600mm / 1830mm
Ink	Reactive & Disperse dye ink
Printing Speed (Ultra High)	67.3 m/min, 720×360 dpi
Printing Speed (Standard)	33.7 m/min, 720×720 dpi
Operating Environment	20-28°C, 50-70% RH
Size (L×D×H)	26,000 × 5,435 × 2,540mm
Weight	~820kg per color (print unit), ~4,700kg (transport unit)

All specifications are subject to change without notice. Confirm exact figures with an Apsom specialist before ordering.

Key Features

Unprecedented quality and speed.

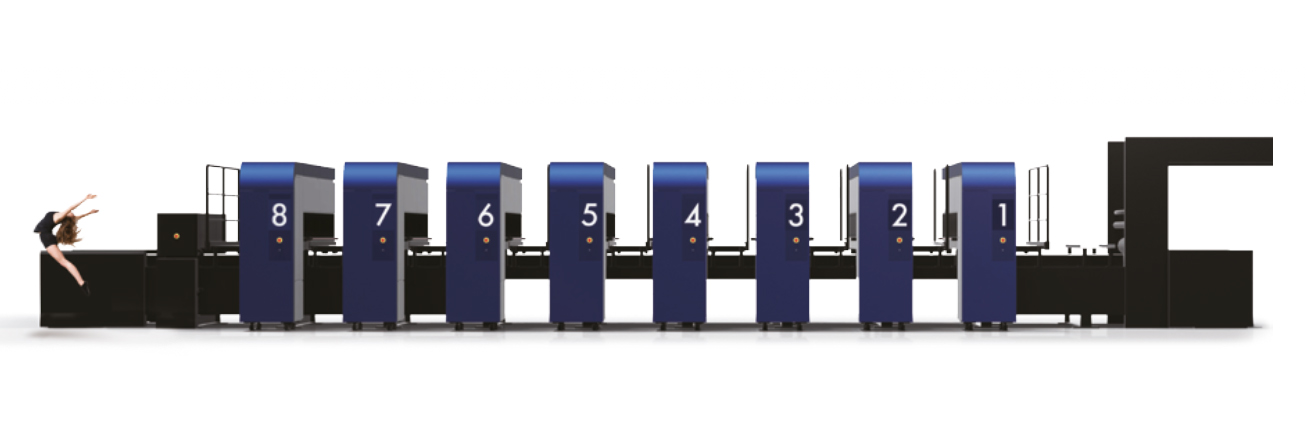

Single Pass Technology

High-definition printing at higher speed than traditional printers.

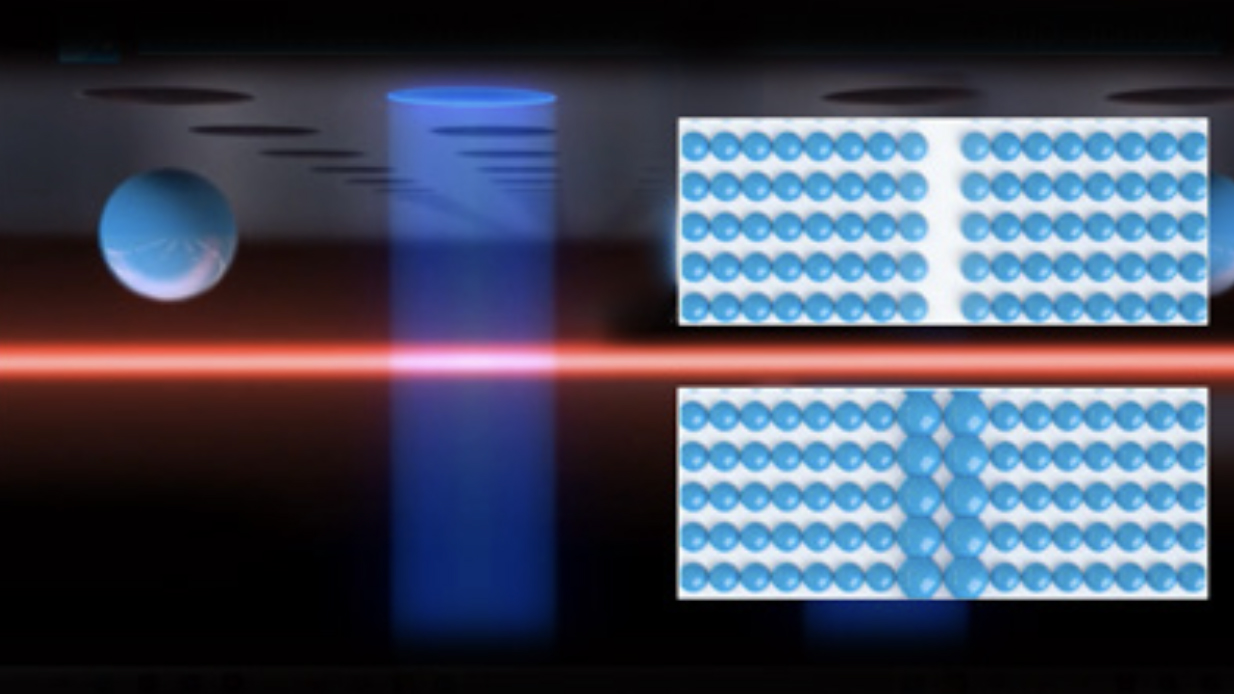

Automatic Nozzle Compensation

Sensors detect and compensate for blocked nozzles automatically.

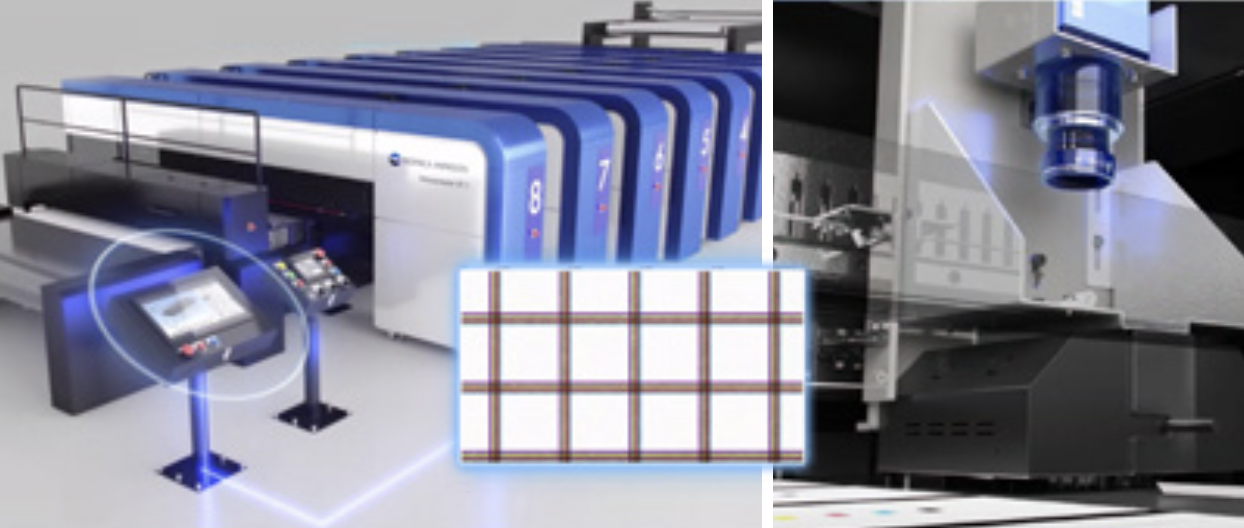

CCD Camera Alignment

Print head alignment carried out automatically for consistent results.

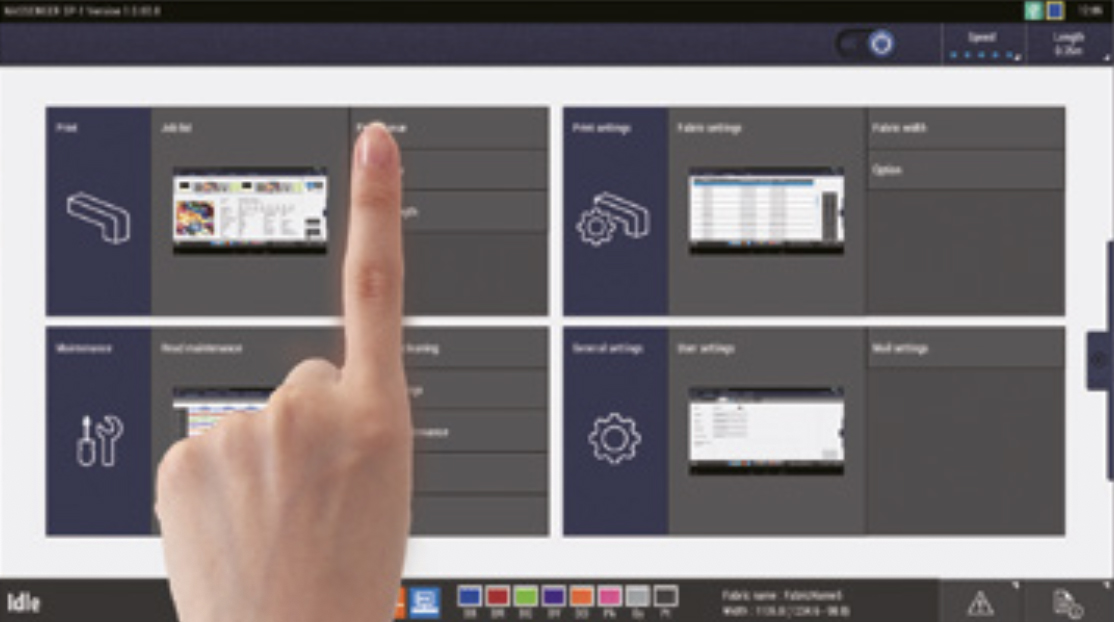

Simple Touch Panel Control

Settings, adjustments, and remote maintenance via tablet.

Get a Quote

Talk to a specialist about this machine.

Tell us about your production needs and an Apsom specialist will get back to you - typically within 1 business day - with pricing and availability for the Konica Minolta Nassenger SP-1e.
