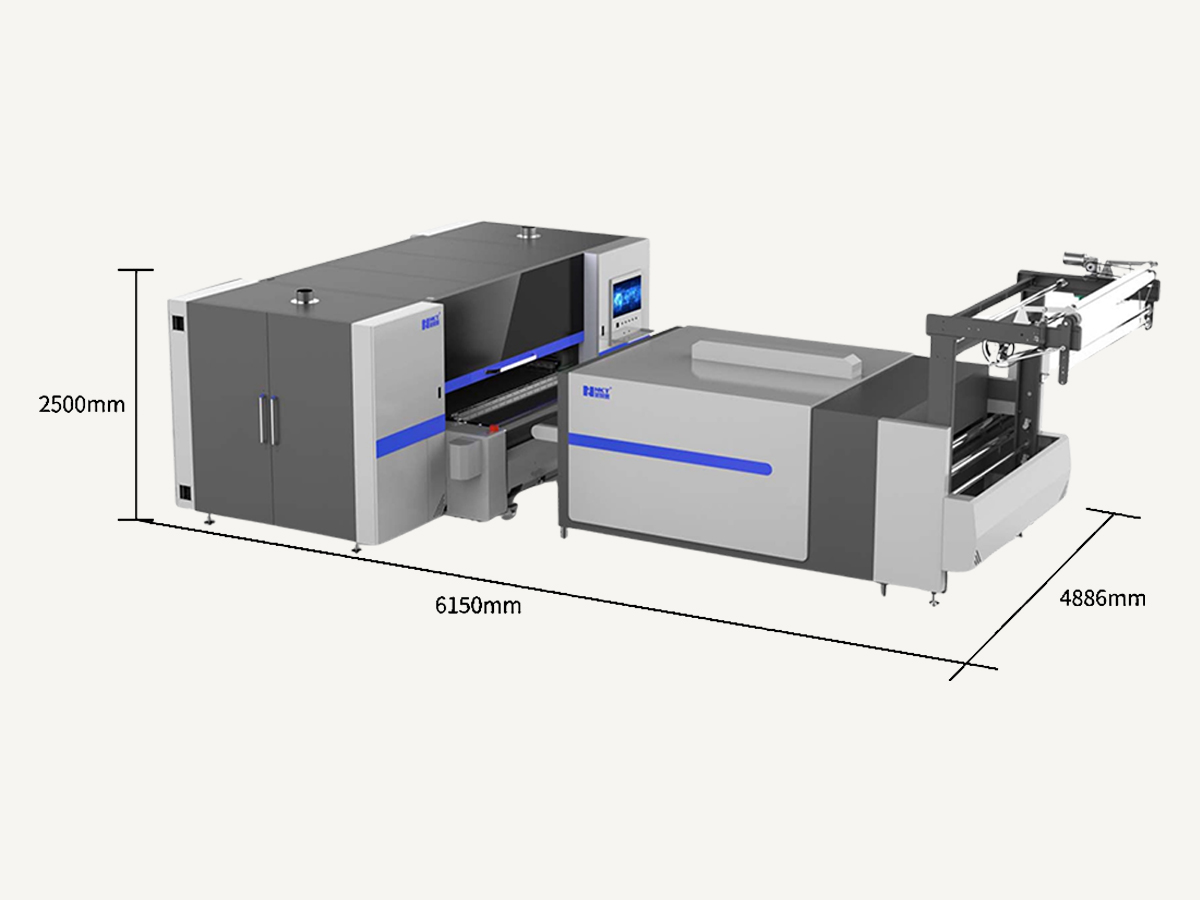

NKT F Series (F418/F422/F426) - additional photo

Textile Digital Printer · Scanning

NKT F Series (F418/F422/F426)

A scanning digital textile printer line from NKT - 1800mm to 2600mm width, 8-10 colour Kyocera print heads.

Kyocera EX600 / KJ4B-0300 printheads - sold & serviced by Apsom

Max printing width 1800mm-2600mm across the series
Up to 884 m²/hr (F418, 32-head Kyocera EX600, 1 pass)
8-10 colour configurations, Neo Stampa RIP
Pan-India installation & AMC support included

Request a Quote Download Brochure

Technical Specifications

Built for the production floor.

Model Range	F418 / F418QRC / F422 / F426
Max Printing Width	1800mm (F418) / 2200mm (F422) / 2600mm (F426)
Number of Colours	8-10 colour
Operating System	Windows 10, 64-bit
RIP Software	Neo Stampa
Printing Capacity (F418, 32-head EX600, 1 pass)	884 m²/h
Printing Capacity (F418, 16-head KJ4B, 2 pass)	556 m²/h
Installed Power	Printer 24kW + dryer (optional)
Weight	4000kg (F418)

All specifications are subject to change without notice. Confirm exact figures with an Apsom specialist before ordering.

Standard Configuration

Built for continuous scanning production.

Movable Press Unit

Consistent fabric contact for accurate printing.

Conveyor Cleaning/Drying Unit

Keeps the belt clean between print runs.

Print Head Protection Unit

Guards heads during idle and maintenance periods.

Linear Motor Scanning System

Precise, repeatable head movement across the fabric.

Get a Quote

Talk to a specialist about this machine.

Tell us about your production needs and an Apsom specialist will get back to you - typically within 1 business day - with pricing and availability for the NKT F Series (F418/F422/F426).
