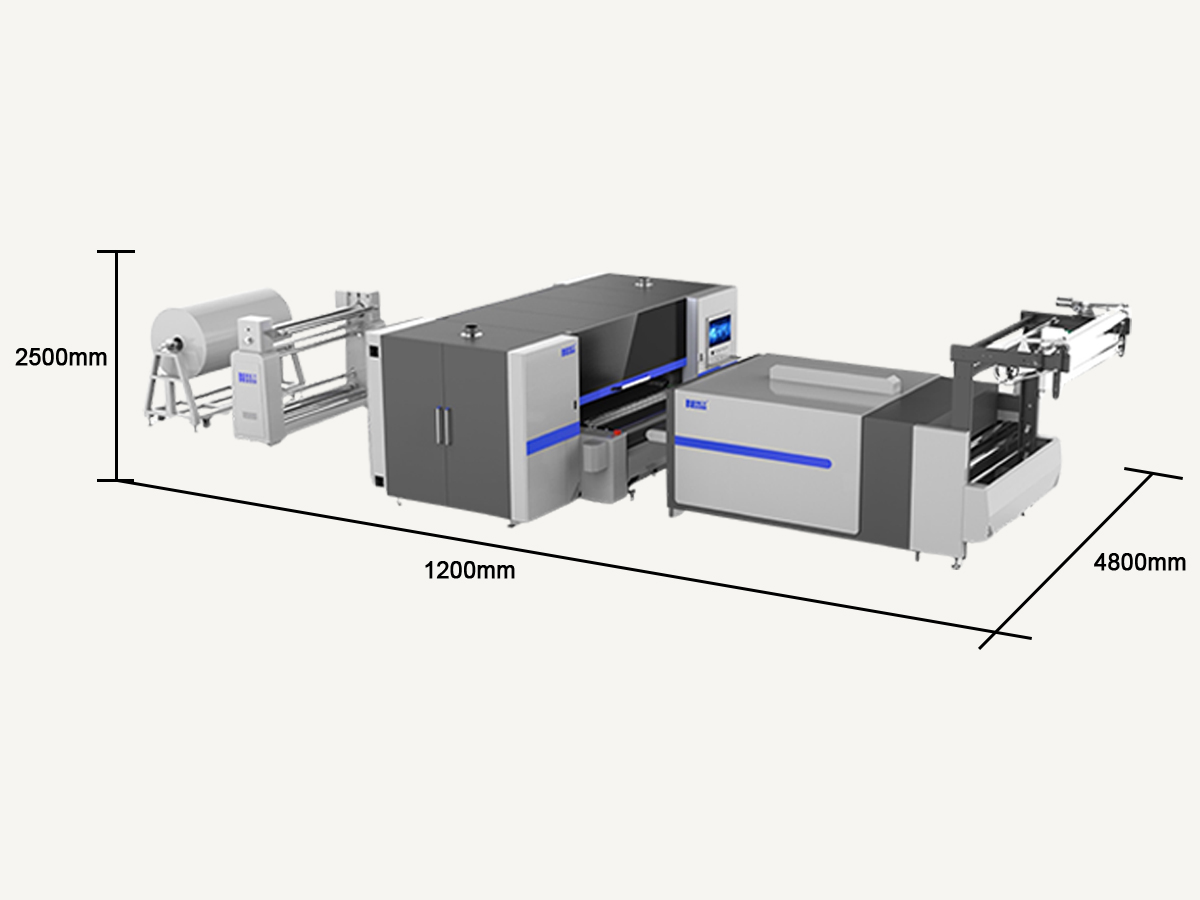

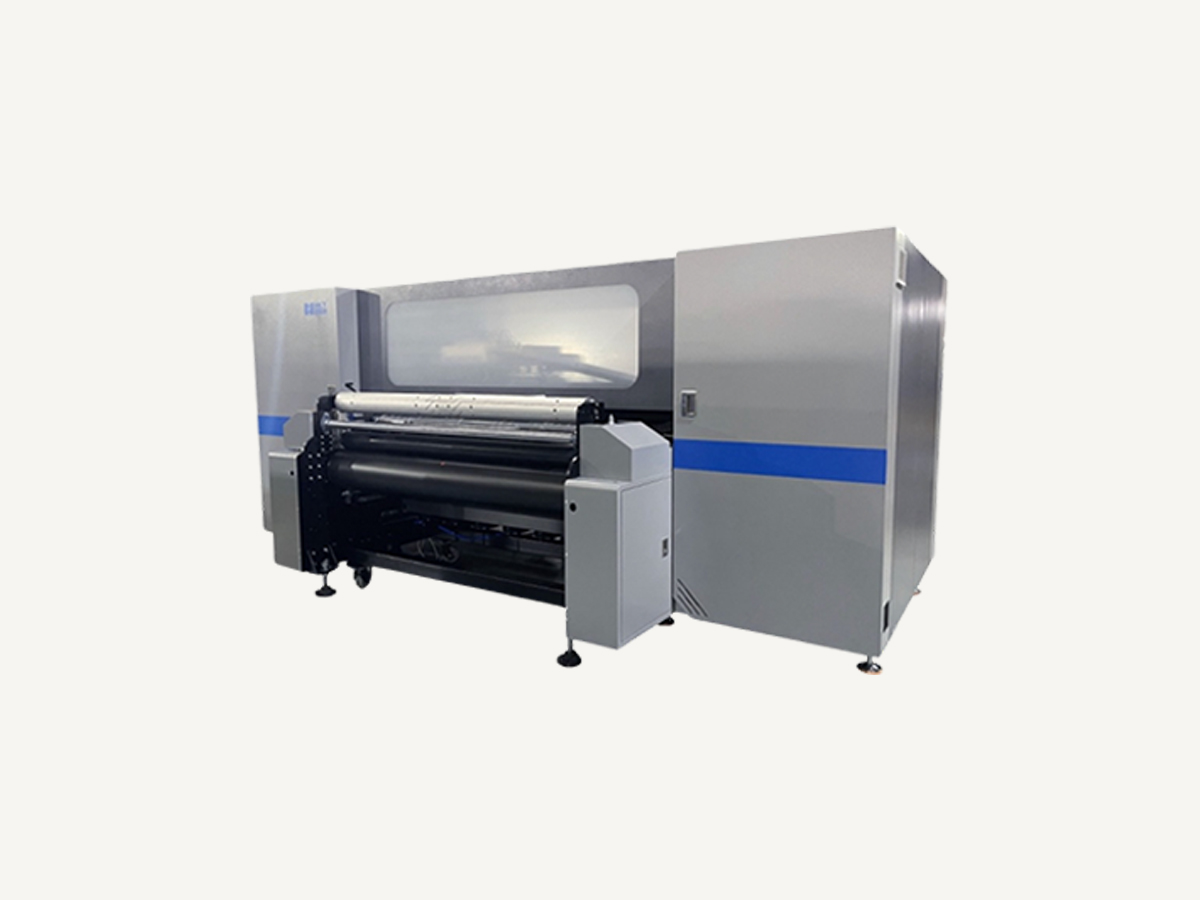

NKT F Series (F618/F818/F822EX) - additional photo

Textile Digital Printer · Scanning

NKT F Series (F618/F818/F822EX)

A larger-format scanning digital textile printer line - up to 1800mm width, with printing capacity up to 1614 m²/hr.

Kyocera EX600 / KJ4B-0300 printheads - sold & serviced by Apsom

Max printing width 1800mm or customized
Up to 1614 m²/hr (F822EX, 64-head EX600, 1 pass)
6-8 colour configurations, Neo Stampa RIP
Pan-India installation & AMC support included

Request a Quote Download Brochure

Technical Specifications

Built for the production floor.

Model Range	F618 / F818 / F822EX
Max Printing Width	1800mm or customized
Number of Colours	6-8 colour
Operating System	Windows 10, 64-bit
RIP Software	Neo Stampa
Printing Capacity (F618, 48-head, 1 pass)	1185 m²/h
Printing Capacity (F818, 64-head, 1 pass)	1435 m²/h
Printing Capacity (F822EX, 64-head, 1 pass)	1614 m²/h
Installed Power	Printer 24kW + dryer (optional)
Weight	5000kg - 6500kg

All specifications are subject to change without notice. Confirm exact figures with an Apsom specialist before ordering.

Standard Configuration

Higher capacity, larger format.

Movable Press Unit

Consistent fabric contact for accurate printing.

Blanket Cleaning/Drying Unit

Keeps the belt clean between print runs.

Head Protection Mechanism

Guards heads during idle and maintenance periods.

Auto Head Cleaning System

Automatic maintenance for consistent output.
