Solvent Printer · StarFire SG-1024

Sovikaa SMTJET 3304

A solvent printer with StarFire SG-1024 printheads in 2 or 4-head configurations - built for high-volume banner and large-format production.

2/4 StarFire SG-1024 printheads - sold & serviced by Apsom

Up to 248 m²/hr (2-pass, 4-head configuration)
3.2m printing width, 600×1080 dpi resolution
All-steel nozzle printhead with inner heating & circulation
Pan-India installation & AMC support included

Request a Quote Download Brochure

Technical Specifications

Built for the production floor.

Printer Model	SMTJET 3304 (2H / 4H configurations)
Printhead	2/4 pcs StarFire SG-1024
Printing Width	3.2m
Printing Speed (2H)	2-pass 124 m²/h, 3-pass 89 m²/h, 4-pass 69 m²/h
Printing Speed (4H)	2-pass 248 m²/h, 3-pass 178 m²/h, 4-pass 138 m²/h
Resolution	600×1080 dpi
Color	16.7 million (CMYK)
RIP Software	Maintop 6.0 (Photoprint / Onyx optional)
Power Supply	AC 220V, 50Hz ±10% (UPS required)
Power Consumption	3000W
Take-Up System	Included
G.W. / N.W.	1350kg / 1200kg

All specifications are subject to change without notice. Confirm exact figures with an Apsom specialist before ordering.

What Sets It Apart

Built for high-volume banner production.

All-Steel Nozzle Printhead

Inner heating & circulation for stable ink output.

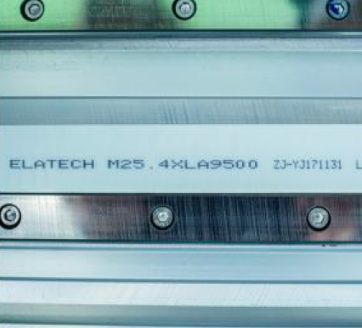

Double Mute Linear Rail

All-aluminium beam for consistent resolution.

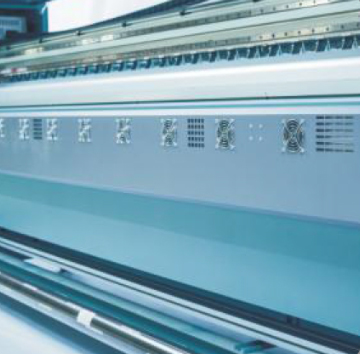

Infrared Drying System

Matched with high-density ink for fast, efficient drying.

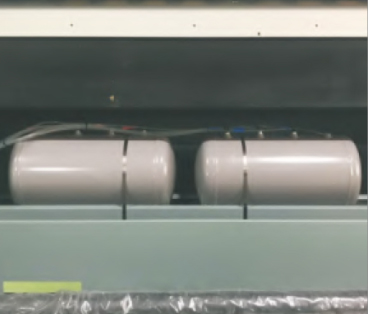

Negative Pressure Recirculation

Nozzle heating keeps printing smooth and stable.

Get a Quote

Talk to a specialist about this machine.

Tell us about your production needs and an Apsom specialist will get back to you - typically within 1 business day - with pricing and availability for the Sovikaa SMTJET 3304.
