Single-Pass Textile Printer

NKT Single Pass for Fabric (F4x4 Series)

A single-pass fabric printing line - from unwinding to drying and winding in one continuous production line, up to 2808mm width.

Kyocera EX600 printhead, single pass - sold & serviced by Apsom

Single pass printing at up to 75m/min
Max printing width 1620mm-2808mm across the series
Up to 416 printheads (2808mm model)
Pan-India installation & AMC support included

Request a Quote Download Brochure

Technical Specifications

Built for the production floor.

Model Range	F4x4-1620 / F4x4-1836 / F4x4A-2808
Print Head Model	Kyocera EX600
Max Printing Width	1620mm / 1836mm / 2808mm (or customized)
Max Quantity of Print Heads	180-416 pcs depending on model
Printing Precision	600 DPI
Max Printing Speed	75 m/min
Ink Type Supported	Reactive, Pigment, Disperse
Dryer	4-5 sections, natural gas/steam
Installed Power	85kW (without dryer)
Whole Line Dimension	44500×8500-10000×4500mm

All specifications are subject to change without notice. Confirm exact figures with an Apsom specialist before ordering.

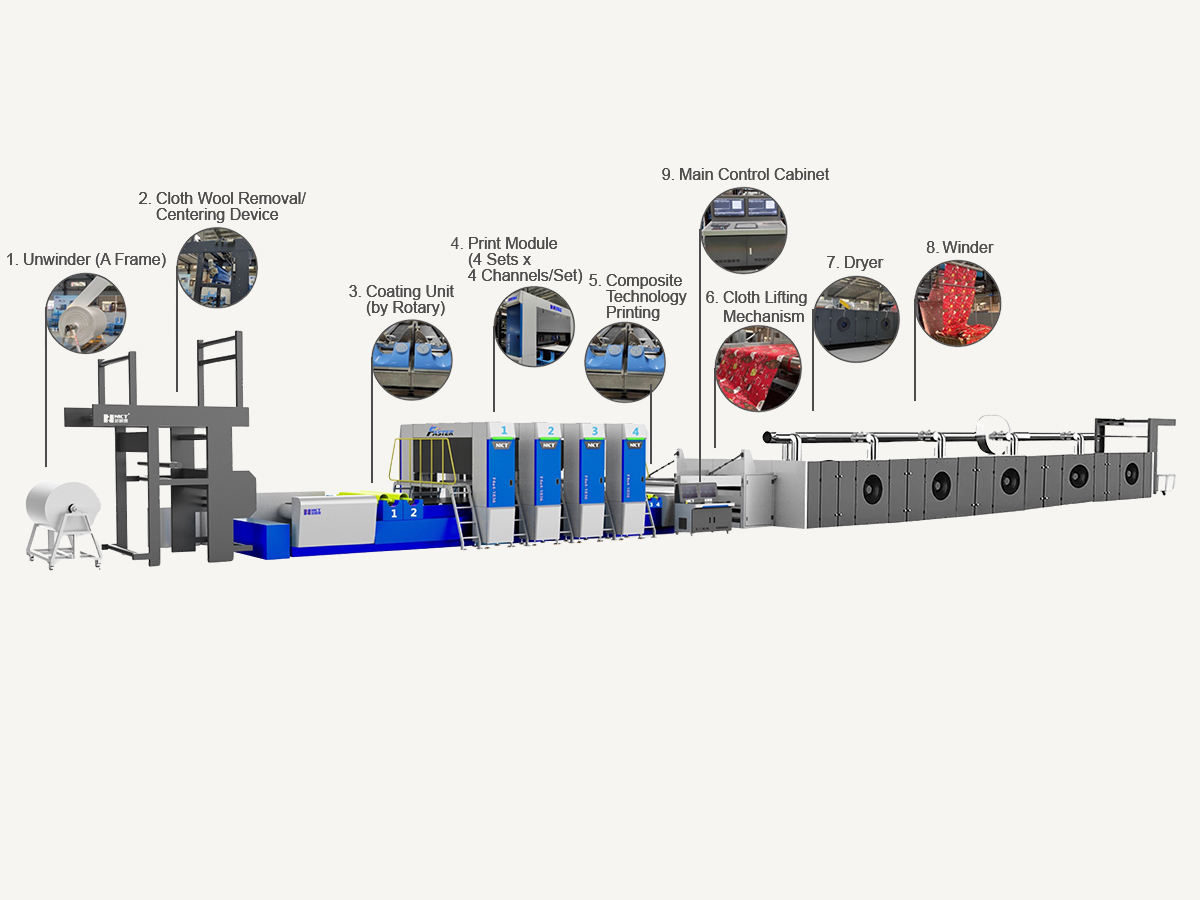

Production Line Stages

One continuous line, start to finish.

Unwinder & Cloth Preparation

Wool removal and centering before printing.

Coating & Print Modules

Rotary coating with 4 sets × 4 channels of print modules.

Composite Technology Printing

Combined coating and printing in one pass.

Dryer & Winder

Integrated drying and winding to finish the roll.
