Ricoh Hi-Jet Belt Type Printer - additional photo

Belt-Type Digital Textile Printer

Ricoh Hi-Jet Belt Type Printer

A high-speed belt-type digital textile printer with Ricoh G6 printheads - available in 4/8-head (1800mm) and 16-head (2000mm) configurations.

Ricoh G6 printhead, 8 or 16 heads - sold & serviced by Apsom

Up to 280 m²/hr (16-head, 2-pass configuration)
1280 nozzles per head, up to 8 colours
Reactive, Disperse, Pigment & Acid ink compatible
Pan-India installation & AMC support included

Request a Quote Download Brochure

Technical Specifications

Built for the production floor.

Print Head	Ricoh G6
Print Head Qty	4 / 8 / 16 pcs
Nozzle Amount	1280 nozzles
Effective Print Width	1800mm / 2000mm
Colour	4 or 8 colours
Speed (8-head, 2-pass)	140-280 m²/h
Speed (8-head, 3-pass)	90-180 m²/h
Speed (16-head, 2-pass)	280 m²/h
Speed (16-head, 3-pass)	180 m²/h
Ink Type	Reactive, Disperse, Pigment, Acid
Drying Type	Suspended or independent drying unit
Print Medium	Fabric, via conveyor belt
File Format	TIFF, JPG, PDF, BMP
RIP Software	Neostampa

All specifications are subject to change without notice. Confirm exact figures with an Apsom specialist before ordering.

Key Features

High-speed belt-type textile printing.

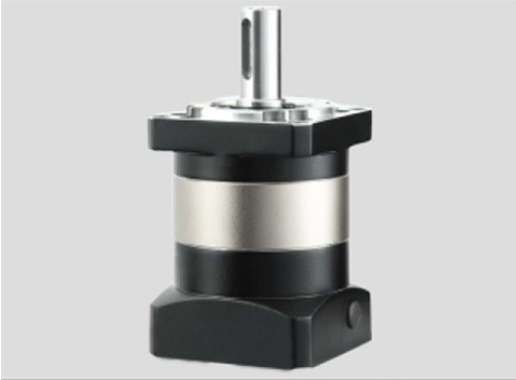

Auto Up & Down Motor

Carriage height adjusts automatically for different fabrics.

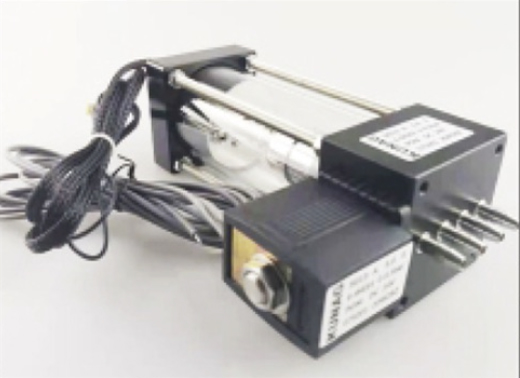

Large Capacity Ink Box

Two-level ink box with electromagnetic valve control.

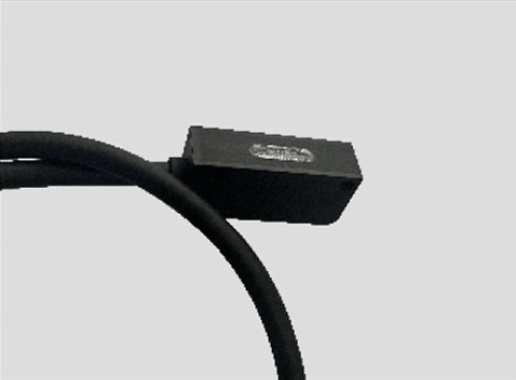

High-Precision Magnetic Grid

Ensures accurate carriage positioning during printing.

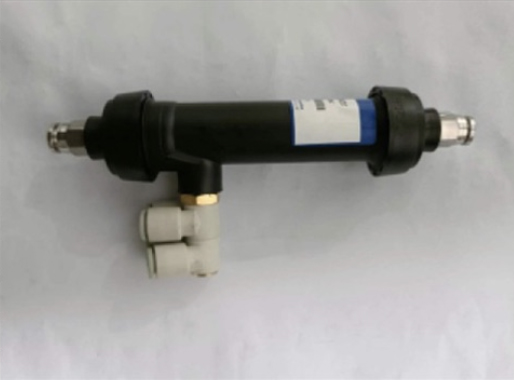

Degassing Module

Removes air bubbles from ink for consistent output.
